Team Jup Maze
Document register
- Poster1 pagePublished
- Presentation videoYouTubePublished
- Bill of materials46 KBPublished
- Team description paperNot shared
- Engineering journalNot shared
- Source code1 KB · GitHubPublished
Sharing each document is the team's decision. “Not shared” means this team chose not to publish it, or did not submit one — not that it is missing from the archive.
In their words
Team JUP is a RoboCup Junior Maze team from the Netherlands competing with a fully autonomous rescue robot designed to navigate complex maze environments, detect victims, and deploy rescue kits without human intervention.

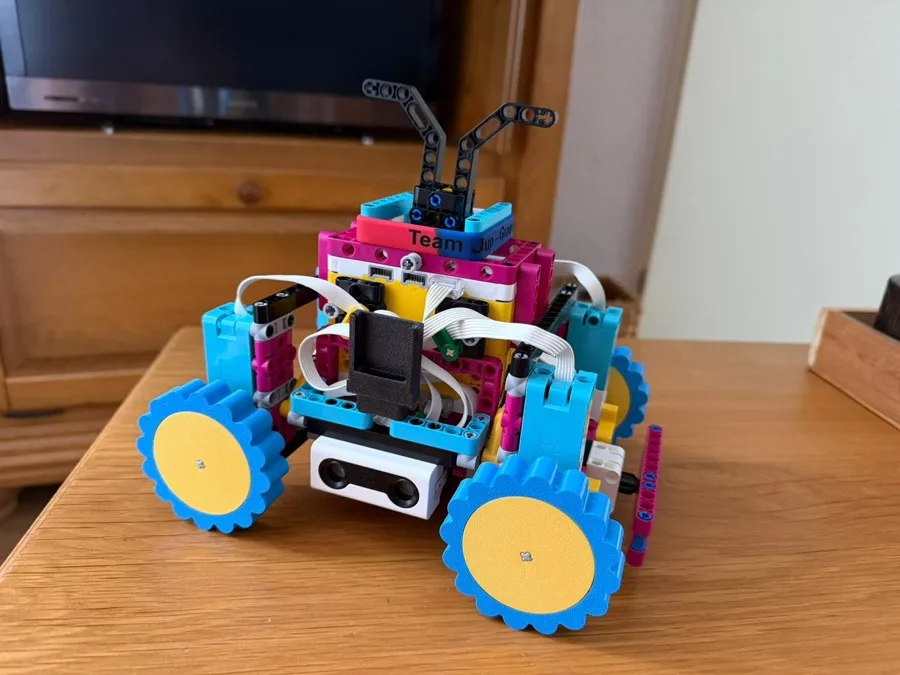

The robot is built using a LEGO Technic chassis combined with custom 3D-printed components, creating a compact, durable, and highly adaptable platform. Navigation is performed using three ultrasonic sensors that continuously monitor obstacles and available paths. A grid-based mapping system allows the robot to keep track of explored areas and make navigation decisions throughout a run.
One of the robot’s distinguishing features is its dual-computer architecture. 2 LEGO SPIKE Prime Hubs handle navigation and motor control, while a Raspberry Pi 5 processes camera data for victim recognition. Communication between both systems is established through Bluetooth, allowing each device to focus on its own tasks while improving overall reliability.
Victim detection is performed using a Raspberry Pi Camera and a custom machine-learning dataset developed by the team. More than 500 images were collected, labelled, and processed using Roboflow to create a dedicated recognition model.
Following lessons learned during the European Championship, Team JUP redesigned significant parts of its software architecture and navigation system, resulting in improved stability, reliability, and competition readiness for the World Championship in Seoul.

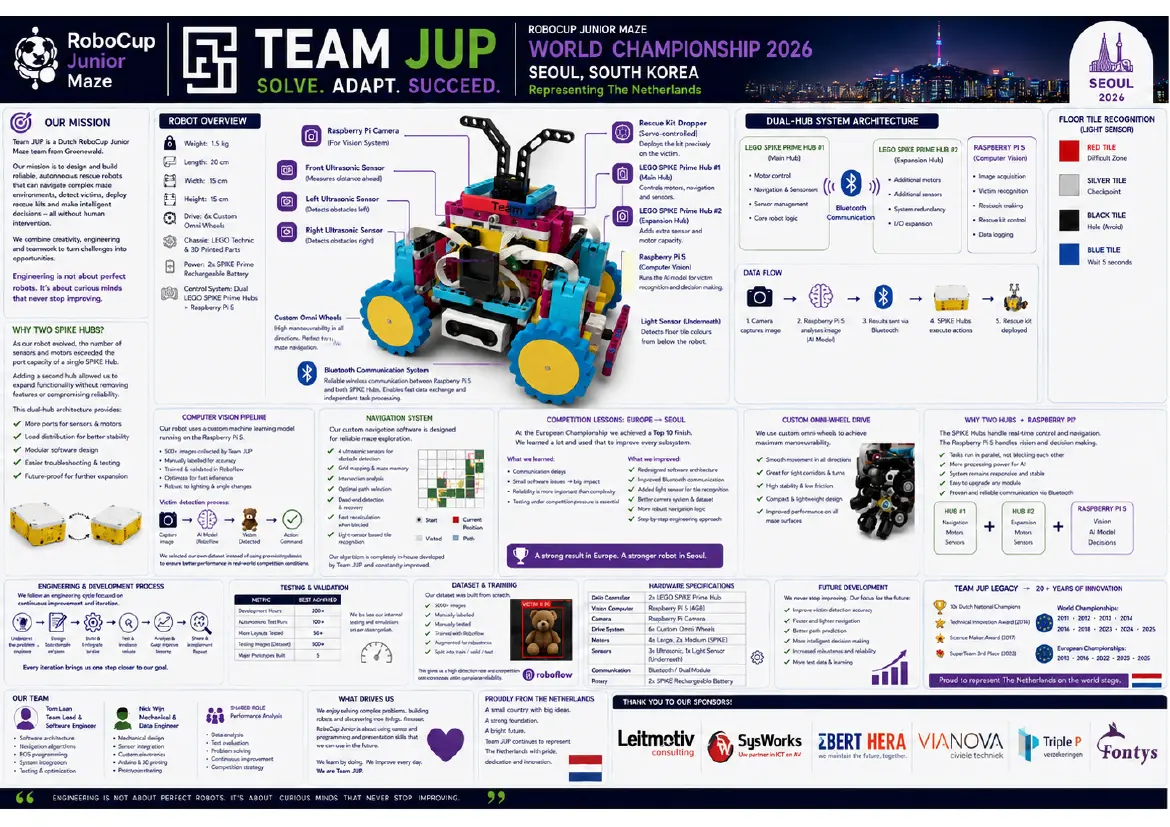

Poster
1 page, rendered as images so they load quickly. This document has no text layer — the words in it are part of the image.
Presentation video
Hosted on YouTube. The player loads only when you press play.
Bill of materials
Shown as the original PDF, because this one is smaller that way and its text stays selectable and searchable.
Source code
The team's own source code, 1 KB. It is a download rather than part of this page, because a zip is something you open on your computer. It comes from GitHub, which some school networks block.
