IES-SÄ
Document register
- Poster1 pagePublished
- Presentation videoYouTubePublished
- Bill of materials1 pagePublished
- Team description paperNot shared
- Engineering journalNot shared
- Source code2 KB · GitHubPublished
Sharing each document is the team's decision. “Not shared” means this team chose not to publish it, or did not submit one — not that it is missing from the archive.
In their words
Our project is about building and improving a rescue line robot for the RoboCupJunior competition. At first, we used LEGO SPIKE Prime for the national competition, but later we changed to ESP32 and M5Stack because we wanted more control and better performance. Our goal was to make a robot that can follow a black line, detect green markers, stop at red lines, avoid obstacles, handle gaps in the line, and later complete tasks in the evacuation zone.

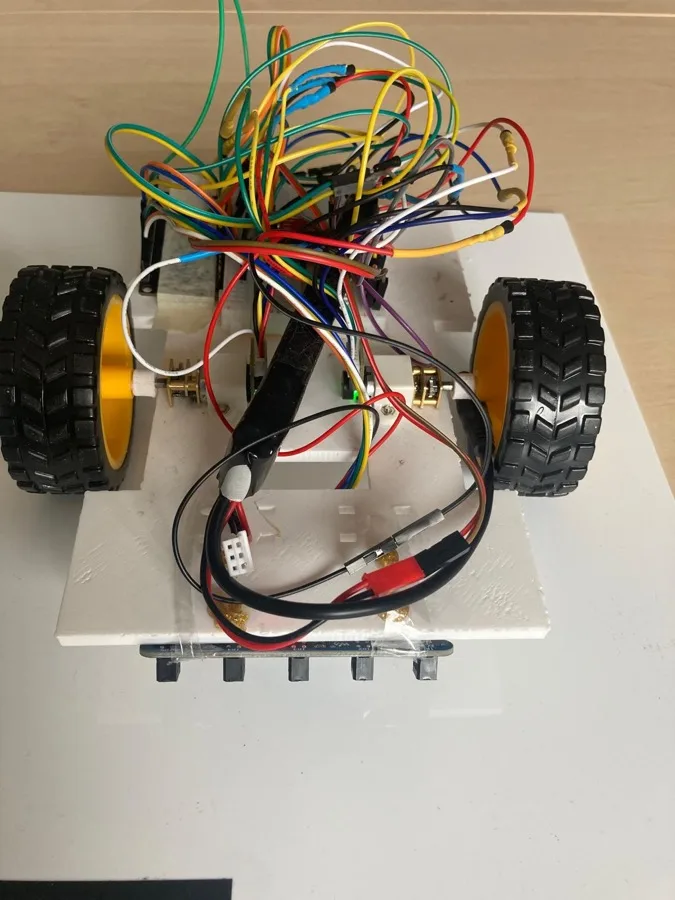

The robot uses an ESP32 controller, IR sensors, RGB colour sensors, a ToF distance sensor, N20 motors, servos, and a 3D-printed chassis. For the software, we used line-position calculations and PID control to help the robot move more smoothly and stay on the line. We also made special solutions for sharp corners, gaps, obstacles, and colour detection.
During the project, we faced many problems, such as limited time, delayed parts, strict size rules, and last-minute changes in the competition rules. By testing the robot many times, we found problems and improved both the design and the code. Overall, this project helped us learn more about robotics, programming, electronics, teamwork, and problem-solving.

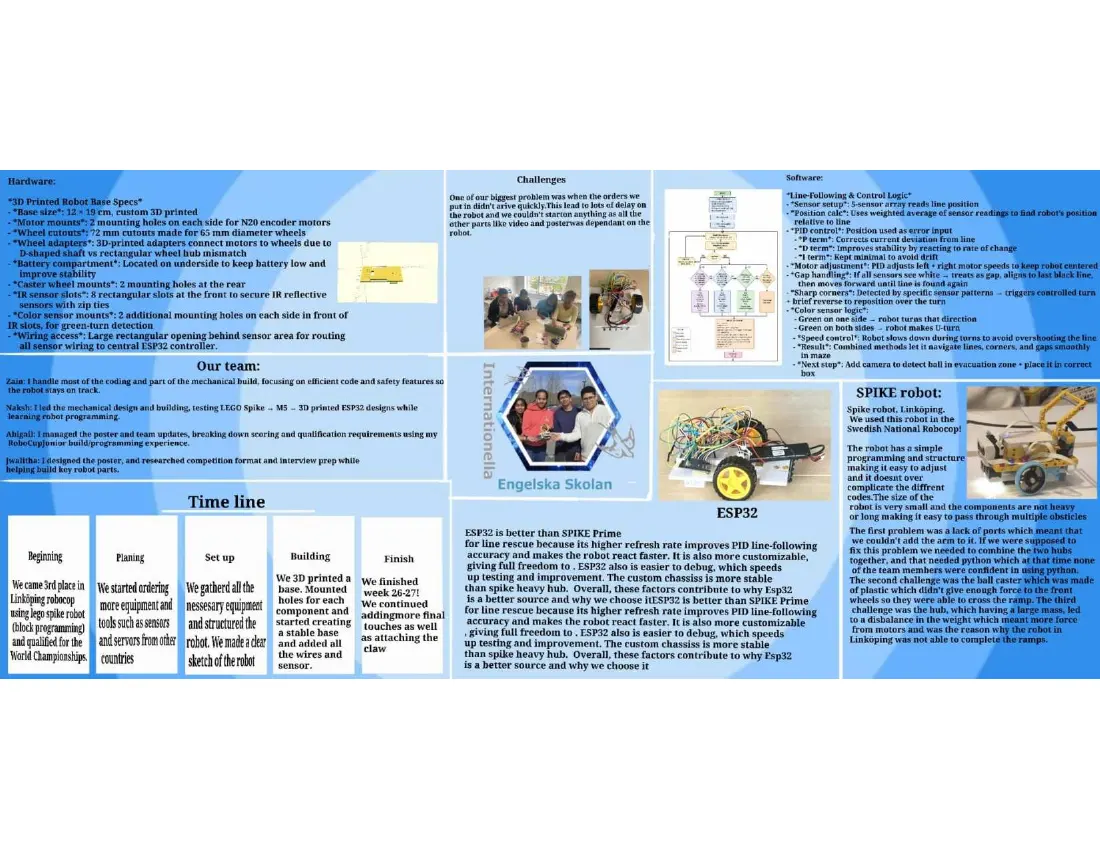

Poster
1 page, rendered as images so they load quickly. This document has no text layer — the words in it are part of the image.
Presentation video
Hosted on YouTube. The player loads only when you press play.

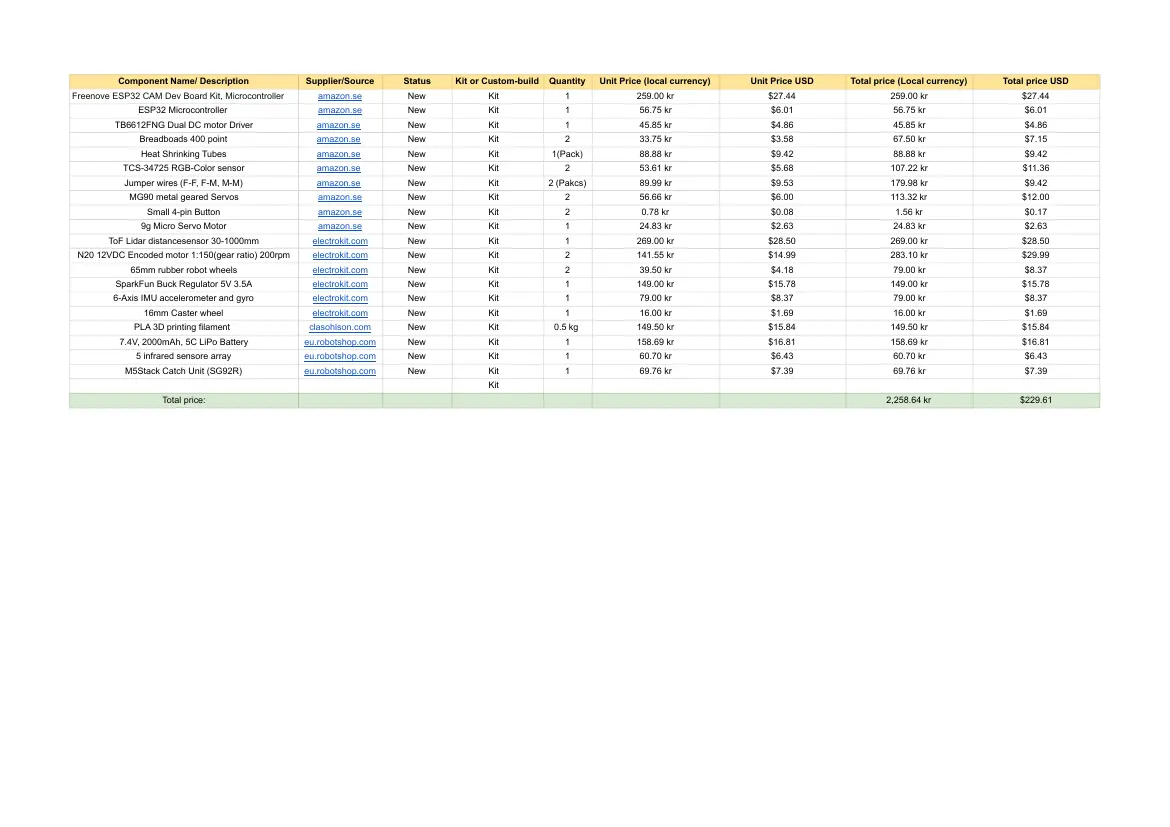

Bill of materials
Read the text of this document — 315 words
Component Name/ Description Supplier/Source Status Kit or Custom-build Quantity Unit Price (local currency) Unit Price USD Total price (Local currency) Total price USD
Freenove ESP32 CAM Dev Board Kit, Microcontroller amazon.se New Kit 1 259.00 kr $27.44 259.00 kr $27.44
ESP32 Microcontroller amazon.se New Kit 1 56.75 kr $6.01 56.75 kr $6.01
TB6612FNG Dual DC motor Driver amazon.se New Kit 1 45.85 kr $4.86 45.85 kr $4.86
Breadboads 400 point amazon.se New Kit 2 33.75 kr $3.58 67.50 kr $7.15
Heat Shrinking Tubes amazon.se New Kit 1(Pack) 88.88 kr $9.42 88.88 kr $9.42
TCS-34725 RGB-Color sensor amazon.se New Kit 2 53.61 kr $5.68 107.22 kr $11.36
Jumper wires (F-F, F-M, M-M) amazon.se New Kit 2 (Pakcs) 89.99 kr $9.53 179.98 kr $9.42
MG90 metal geared Servos amazon.se New Kit 2 56.66 kr $6.00 113.32 kr $12.00
Small 4-pin Button amazon.se New Kit 2 0.78 kr $0.08 1.56 kr $0.17
9g Micro Servo Motor amazon.se New Kit 1 24.83 kr $2.63 24.83 kr $2.63
ToF Lidar distancesensor 30-1000mm electrokit.com New Kit 1 269.00 kr $28.50 269.00 kr $28.50
N20 12VDC Encoded motor 1:150(gear ratio) 200rpm electrokit.com New Kit 2 141.55 kr $14.99 283.10 kr $29.99
65mm rubber robot wheels electrokit.com New Kit 2 39.50 kr $4.18 79.00 kr $8.37
SparkFun Buck Regulator 5V 3.5A electrokit.com New Kit 1 149.00 kr $15.78 149.00 kr $15.78
6-Axis IMU accelerometer and gyro electrokit.com New Kit 1 79.00 kr $8.37 79.00 kr $8.37
16mm Caster wheel electrokit.com New Kit 1 16.00 kr $1.69 16.00 kr $1.69
PLA 3D printing filament clasohlson.com New Kit 0.5 kg 149.50 kr $15.84 149.50 kr $15.84
7.4V, 2000mAh, 5C LiPo Battery eu.robotshop.com New Kit 1 158.69 kr $16.81 158.69 kr $16.81
5 infrared sensore array eu.robotshop.com New Kit 1 60.70 kr $6.43 60.70 kr $6.43
M5Stack Catch Unit (SG92R) eu.robotshop.com New Kit 1 69.76 kr $7.39 69.76 kr $7.39
Kit
Total price: 2,258.64 kr $229.61
1 page, rendered as images so they load quickly. The text above is the document's own, extracted from the PDF.
Source code
The team's own source code, 2 KB. It is a download rather than part of this page, because a zip is something you open on your computer. It comes from GitHub, which some school networks block.
